Upgrading from a previous version of XLL+

Note: The following topics address the issues that arise when upgrading projects built with earlier versions of XLL+. Click here to skip this section.

Older projects

Version 6 of XLL+ contains some significant changes to its internal architecture. In order to support the new features of Excel 2007, and also to support the new capabilities for extensions, many far-reaching changes needed to be made.

If you built an add-in using an older version of XLL+, then it will not compile or link successfully using the XLL+ 6 headers and libraries. However, if you run the XLL+ Upgrade Wizard against your project all the necessary changes will be made to your project to allow it to be built with XLL+ 6.

Upgrade Wizard

There are three steps to upgrading a project built with an older version of XLL+.

  1. Open the project or solution in Visual Studio, and, if the project is under source control, check out the project file and source files.

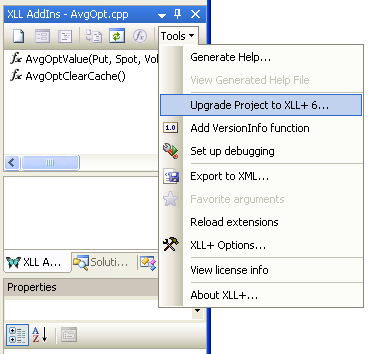

  2. In the XLL Add-ins window, click on the Upgrade Project to XLL+ 6... command, located on the Tools menu.

  3. Check the upgrade report, and rebuild the project.

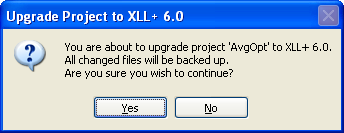

Running the Upgrade Wizard is simple. Just click Yes on the confirmation dialog.

When the Wizard has finished running it will open a browser window to display the XLL Plus Upgrade Wizard Report. Examine this to see if any errors were reported.

If all went well, your project is now ready to be rebuilt and run. Your existing add-in functions can take advantage of all the new features of XLL+ 6 and of Excel 2007.

Note: Running the Upgrade Wizard a second time on a project will not harm it. The wizard only changes code and project settings once.

Changes made by the Wizard

The wizard makes changes to the project settings and to the source files that contain XLL+ add-in functions.

A backup directory is created below the project directory, and copies of all changed files are stored there. By copying these files back to the project directory, you can reverse all changes made the Upgrade Wizard.

Project Settings

The following changes are made, if necessary, to the project settings:

Tool Setting Change
C/C++ Additional Include Directories The directory containing the XLL+ 6 header files is added, at the start of the list.
C/C++ Enable C++ Exceptions Set to "Yes With SEH Exceptions (/EHa)".
Linker Additional Library Directories The directory containing the XLL+ 6 library files is added, at the start of the list.
Linker Force Symbol References The symbol _DllMain@12 is added, at the start of the list.
Resources Additional Include Directories The directory containing the XLL+ 6 header files is added, at the start of the list.
Debug Command Set to call the Excel executable file (as specified in the DefaultExcelExe setting).
Debug Command Arguments Set to "$(TargetPath)", so that Excel immediately opens the project's XLL file.

Add-in functions

The following changes are made, if necessary, to files containing add-in function:

Location Change
IMPLEMENT_XLLFN2 The macro is replaced by IMPLEMENT_XLLFN3. New arguments supporting Excel 2007 are added, and the pszExt argument is replaced by a pszExt12 argument which contains a full definition of the add-in function's signature and behavior.
Add-in function definition The existing function definition is replaced with two wrapper functions (one each for use with Excel 2003 and below and for Excel 2007 and above) and a common implementation function. All code that you added to the function below the generated code (demarcated by //}}XLP_SRC) now resides in the common implementation function.
Validation The validation code that was generated at the start of the existing add-in function is completely replaced by XLL+ 6 validation code, which throws exceptions instead of returning error codes.

Note that your existing code, outside the //}}XLP_SRC delimiters, is completely unchanged. With the exception of the special cases listed under Breaking changes, it will compile and run immediately, with no changes in behavior.

Report

An upgrade report is generated and saved in the backup directory as UpgradeReport.html. The report contains details of all actions performed by the Wizard.
