Our new product LinearB (available early next year) takes a new approach to constructing Excel C++ add-ins: it inspects the functions in your existing code libraries and automatically generates Excel add-in functions around them.

If you've got working C++ code, you can have an Excel add-in in minutes. You don't need to learn anything about programming for Excel; just point LinearB at your code and let it run.

Developers who frequently enlarge their libraries to match fast-changing business requirements can benefit greatly from LinearB, because it completely removes the need for an entire stage of development. When you add new functionality to your code libraries, or modify existing functions, you can count on LinearB to pass all the relevant changes on to the Excel add-ins that it produces.

The LinearB User Interface

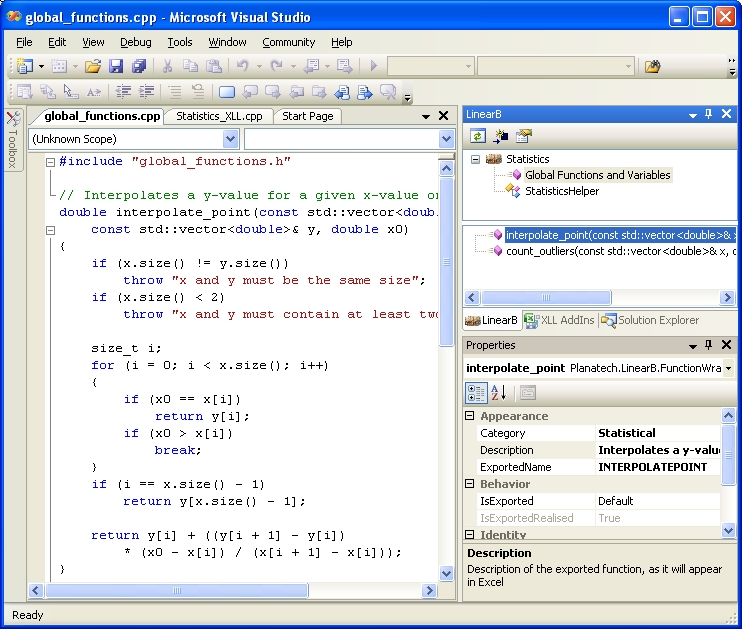

LinearB is a Visual Studio package which adds a new explorer window to Visual Studio. This window contains a list of all the C++ functions, fields and methods within your project that are available for export as Excel add-in functions.

Code generation

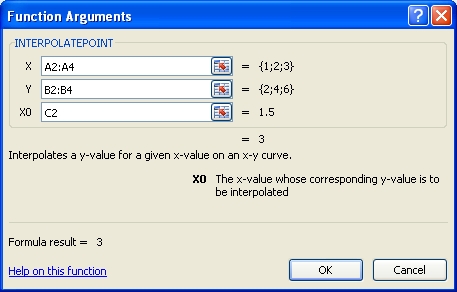

LinearB reads your source code and extracts as much information as possible about each of the functions, methods and fields contained in it. This includes the signature of the function, and any available comment, which will be used as the function's description in the Excel Formula Wizard.

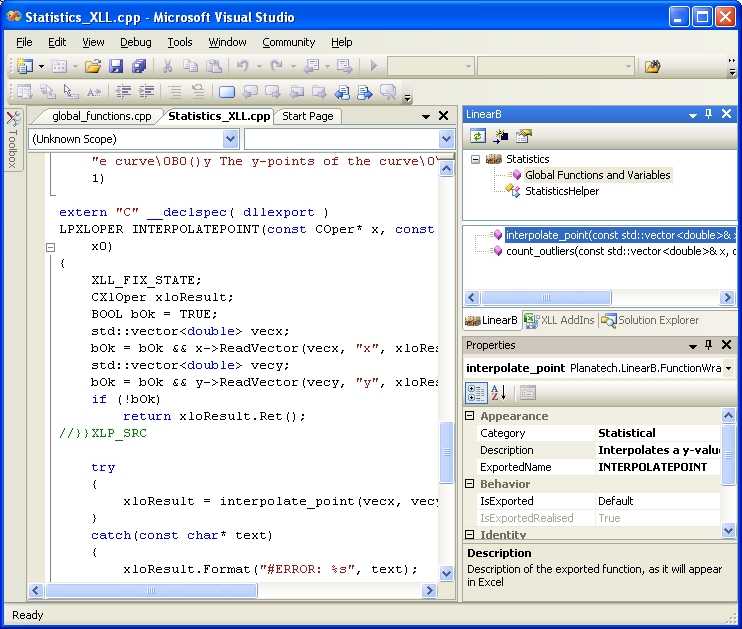

When you build your project, LinearB processes all the information that it has gathered, and generates an Excel add-in wrapper function. This function takes care of all the tasks necessary to manage a call to your function from Excel:

1. Registering the add-in function with Excel.
2. Translating each input passed by Excel into the type expected (for example, transforming a range of cells into a an object of type std::vector<double>).
3. Returning an error if an input was not correctly formed, or was otherwise invalid.
4. Calling your function with the transformed input values.
5. Catching any exceptions that may have occured during your function, and returning an appropriate value to Excel.
6. Returning the output(s) of your function to Excel.

Excel Add-ins

When the project is built, an XLL add-in file is produced, which delivers your function to Excel, as a high-performance add-in, written entirely in C++, and fully integrated into Excel.

The add-in function will take full advantage of the new features of Excel 2007, including huge arrays, multi-threaded calculation and unicode strings. It will also work perfectly with older versions of Excel, since two versions of each add-in function are generated, one for Excel 2007, and one for older versions.

The add-in function will contain all the features that you need in a critical environment:

• Useful error messages when an input is unacceptable.
• Safe and informative handling of C++ exceptions (and also of C runtime exceptions).
• The results of the call can be saved in a cache if the performance criteria justify it.
• The function can be prevented from being called from the Excel Formula Wizard (which can be very inconvenient if the function performs slowly).

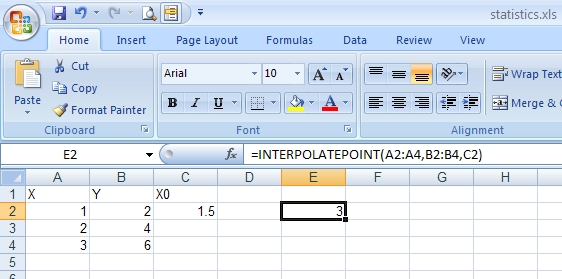

Everything that LinearB was able to find out about the function, along with any information that the developer provided through the LinearB User Interface, is available to the user of the function in Excel.

Requirements

For information about what LinearB runs on and with, please see LinearB requirements.

Availability

LinearB will be available in the 3rd Quarter of 2008, with a target date of August 1st.

See also

You can find some more LinearB screenshots here.

You can find some technical data about LinearB here.
